Sirai P203T01 20A Presssurestat
Sirai P203T01 20A Presssurestat
Sirai P203T01 20A Presssurestat
Sirai P203T01 20A Presssurestat

Sirai P203T01 20A Presssurestat

Sirai
Price
Regular price $14600
Regular price Sale price $14600
Save
/
  • In stock, ready to ship
  • Free shipping within Canada with orders over $75
  • Generous return and exchange policy
  • Coffee Addicts supported warranty
Shipping calculated at checkout.

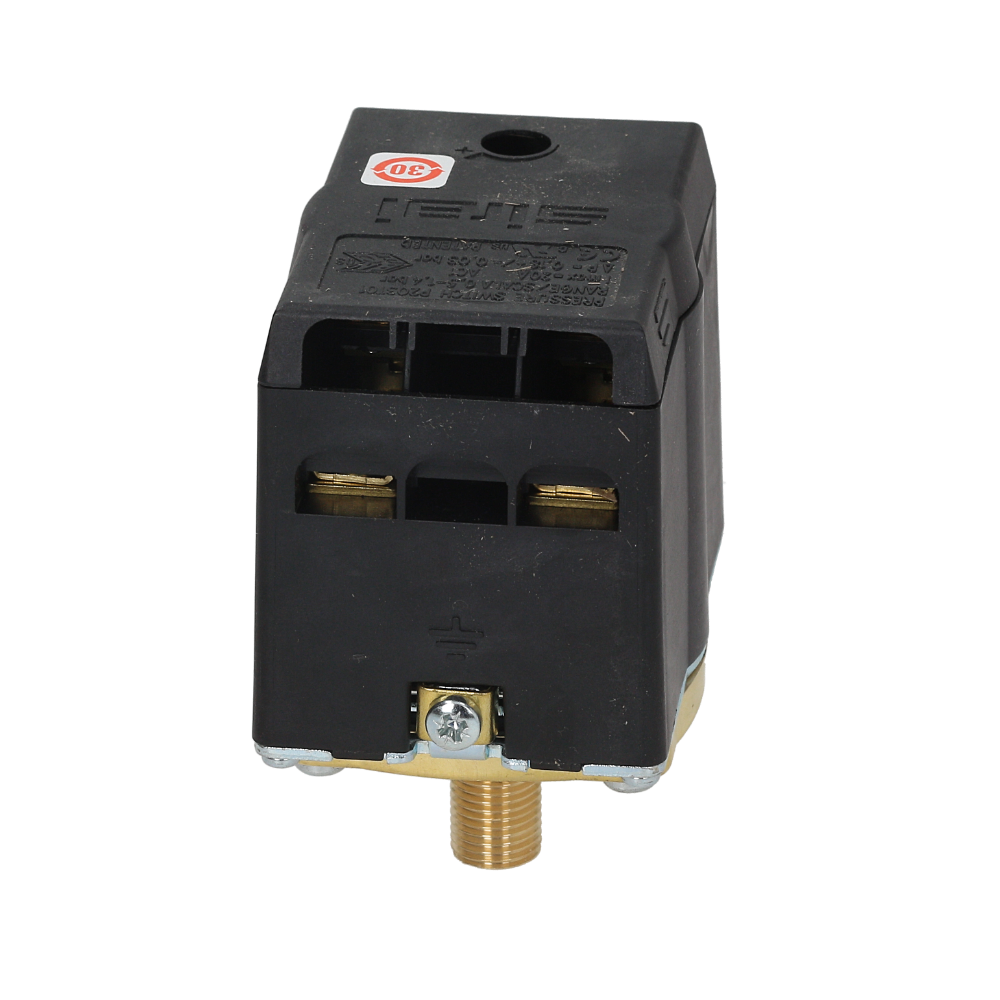

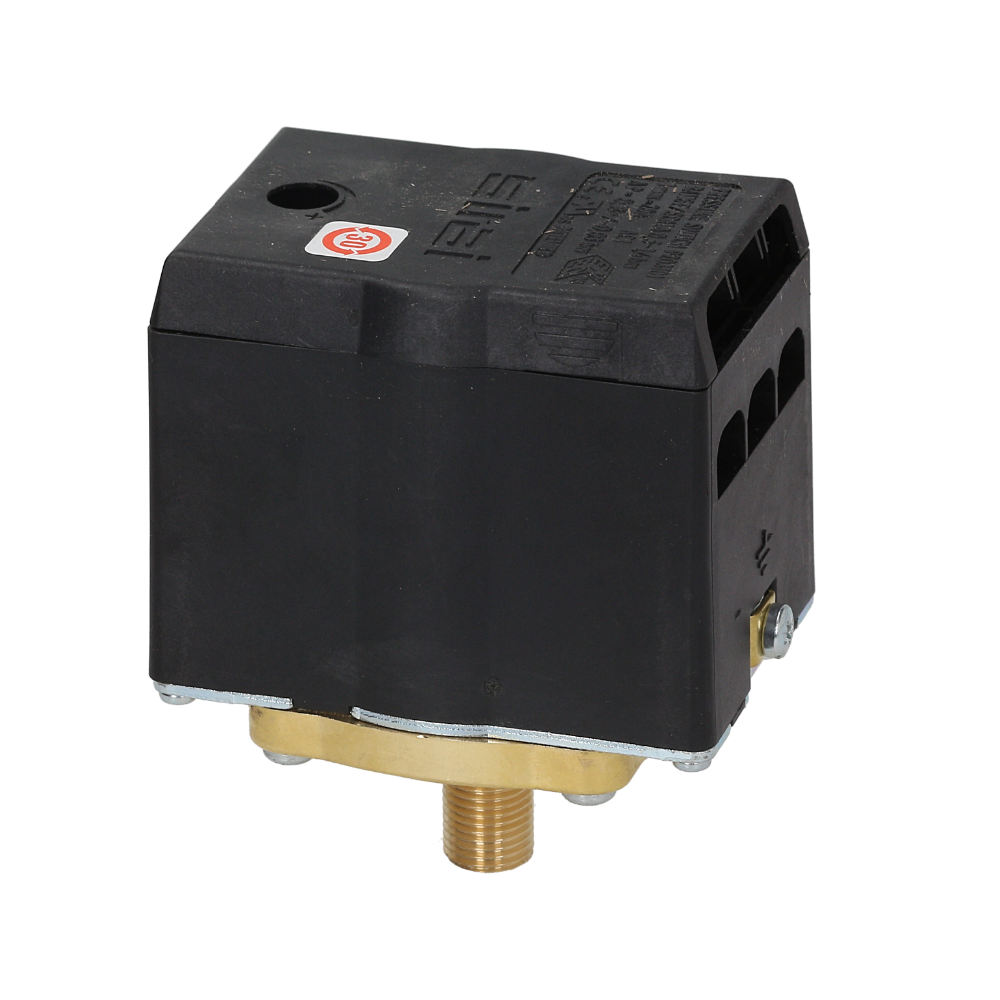

Pressurestat for 110~120/220~240V equipment, Sirai P203T01. This is the part that regulates your boiler heating via a diaphragm that expands and contracts as the boiler steam pressure raises and lowers, activating the contacts and sending a signal to the heating element telling it to turn on or off.



CE-cURus approved
ISO 228 G connection 1/4"M for pipe ø 4x6 mm
adjustable scale 0.5÷1.4 bar
fixed differential 0.18 (± 0.03) bar
fluid max. temperature :140°C
max contact load 20A
2 poles




 Cross-references:

Part number Manufacturer
P203T02  Asco
1320800 LF
P203T1B0  Sirai
P203T01  Sirai
A199904296 Rocket
