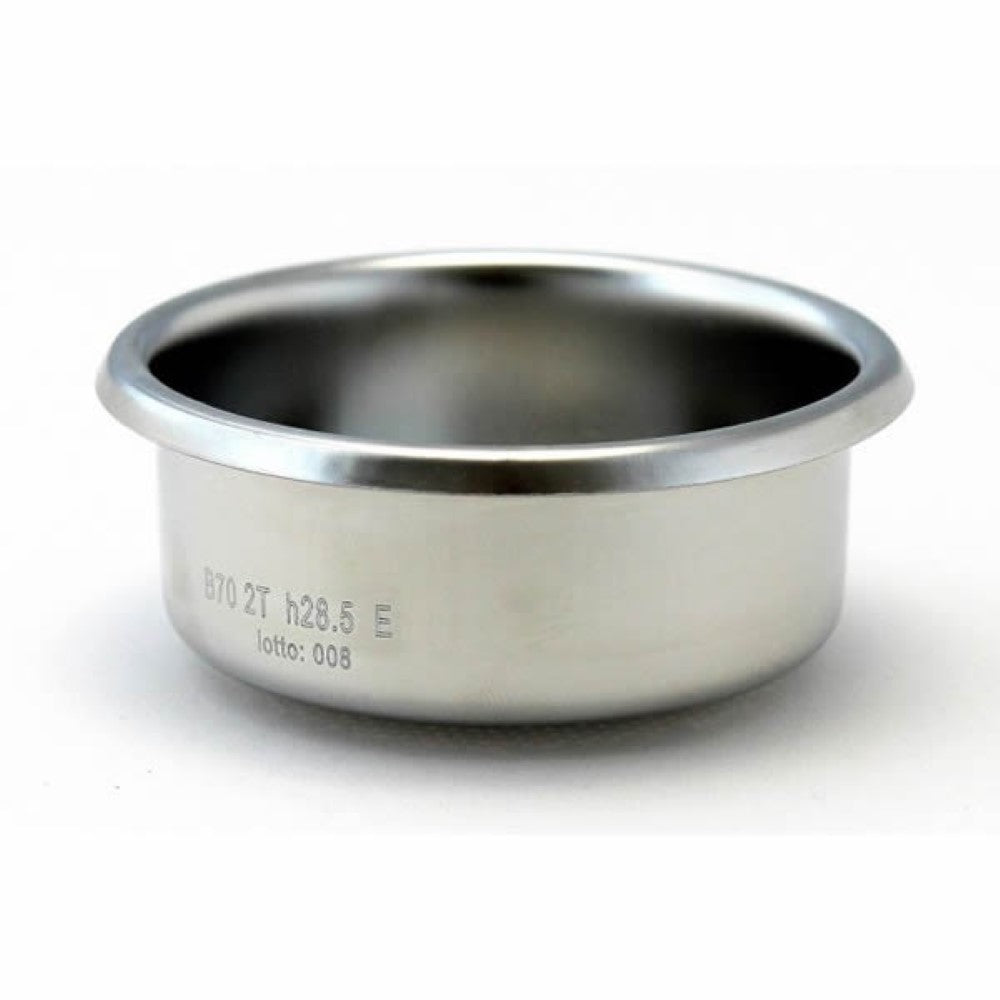

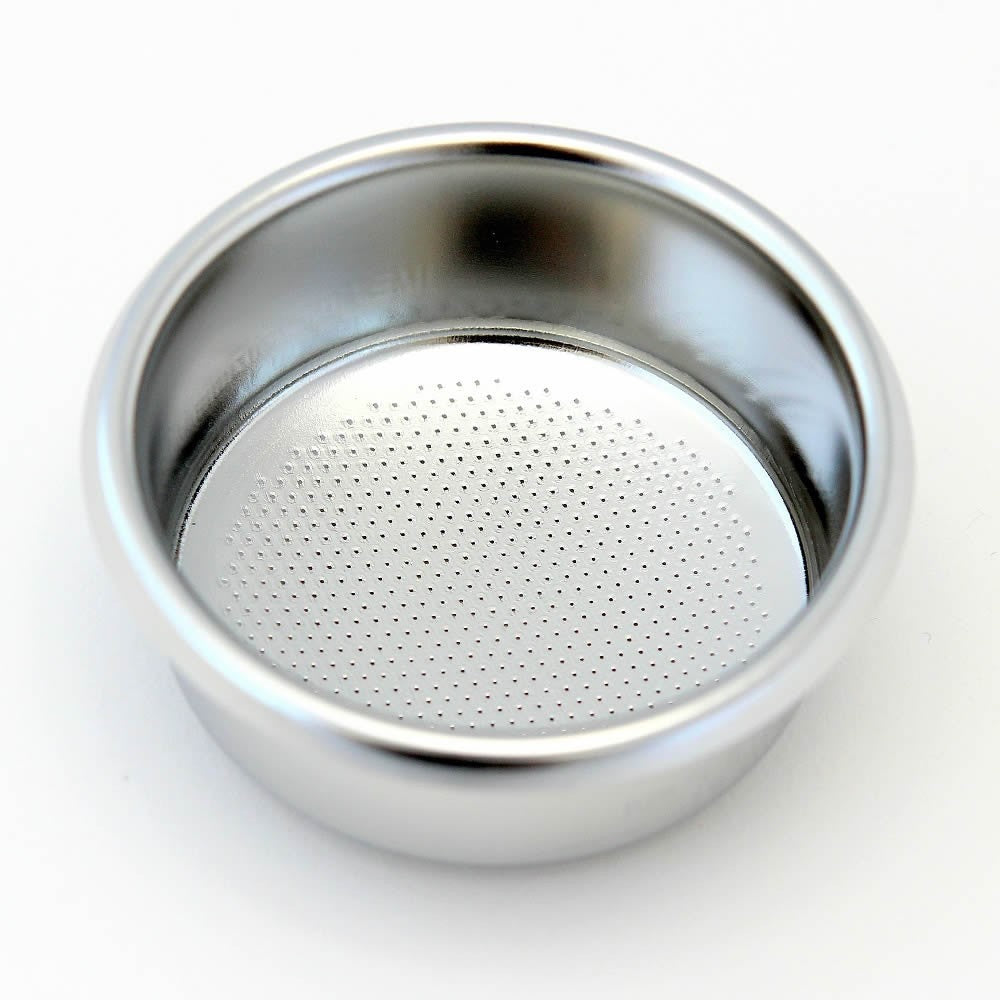

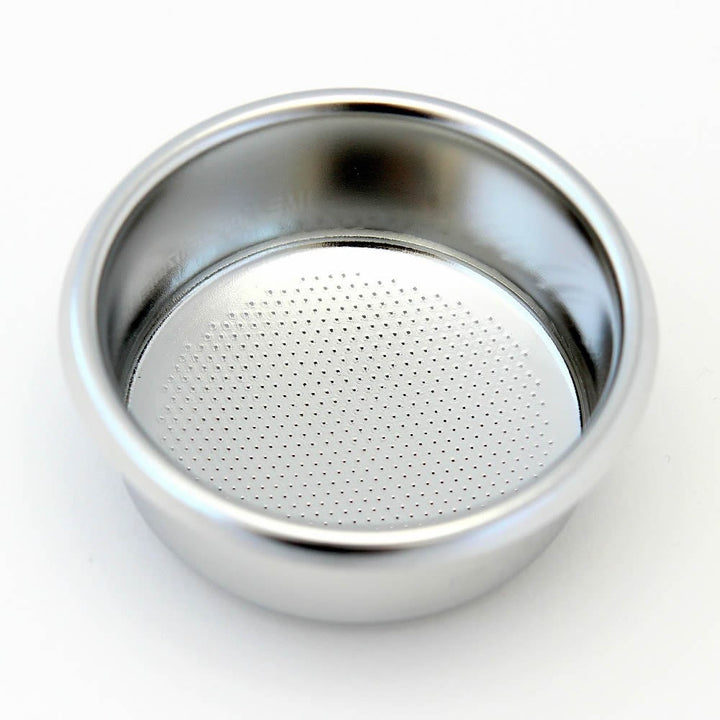

IMS Precision Portafilter Triple Basket - 18/22gr - Coffee Addicts Canada

IMS Precision Portafilter Triple Basket - 20/22gr

by IMS
$35.00

Take your coffee game to the next level with this high quality filter basket.  The electro polished finished combined with an engineered perforation pattern ensure the best and most consistent coffee extraction.  The shape was designed by IMS to optimize the ratio between base and height of the coffee puck as well as facilitate drying and expulsion.

Suitable for standard portafilters accepting a 58/58.4mm tamper base.

Please make sure that you measure your portafilter depth to ensure  it can accept a 28.5mm tall basket.  A bottomless portafilter may be required.



Features:

  • Border  Ø70mm (B70)
  • Capcaty: 2 cup (2T)
  • Height  28.5 mm (H28.5)
  • Body: Ø60 mm for Ø58/58.4mm tamper
  • Capacity 20/22g
  • Perforated area: 49mm
  • 715 round holes with conical section and 0.30mm diameter
  • IMS B702TH28.5


CAPACITY

CODE HEIGHT DARK  MEDIUM  LIGHT
B702TH24.5M h. 24.5 mm 16/18 gr 17/19 gr 20/22.5 gr
B702TH26.5M h. 26.5 mm 18/20 gr 19/21 gr 22/24 gr
B702TH28.5 h. 28.5mm 20/22 gr 21/23 gr 24/26 gr



Will fit most:

Ascaso, Astoria, Bezzera, BFC, Bianchi, Brasilia, Casadio, Conti, E61 Groups, ECM, Elektra, Expobar, Faemo, Fiorenzato, Fracino, Futurmat, Grimac, Iberital, Kees van der Westen, Magister, Marzocco, Nuova Era, Orchestrale, Pavoni, Promac, Quality Espresso, Rancilio, Rocket, Royale, Sab Italia, San Remo, Scala, Simonelli, Slayer, SV Italia, Synesso, VFA Expres, Vibiemme, Victoria Arduino, Wega

Availability: Translation missing: en.general.icons.icon_check_circle icon In stock, ready to be shipped

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Mark

Great smooth basket, spent pucks seem to slide right out! Though I do get some puck spinning/popping up when I tamp... these really are super smooth baskets. They clean up nicely though, and the flow is good. Not crazy fast but a good speed. Some baskets are really fast flow and that would throw me off if switching between baskets. One too many variables. This and the Barista Pro Nanotech are pretty similar. Big IMS fan here! Solid overall, and not as expensive as VST it seems. Good stuff.
